Fabrication - Fabrication Capacity

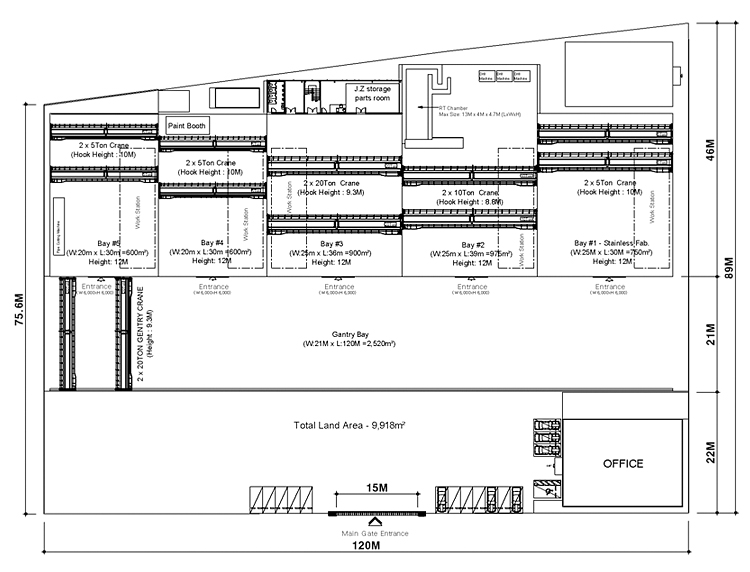

Area of Plant

Covered Fabrication 5 Bays Uncovered Fabrication Gantry Bays Total Land Area
3,825㎡ 2,520㎡ 9,918㎡

Fabrication Capacity

Description Max. Size/ Range Now
Manufacturing		 Max. Size/ Range Capable Of
Manufacturing		 Ton(Set)/ Monthly
Process Burner 2M 20M 100Sets
Flare Stack Package 2M x 110M 4.5 x 150M 100Ton
Pressure Vessel 4.5M 5M 30Ton

Building Bay and Crane Data

Bay Dimensions Type Crane Number Capacity Height Under Hook Electric or Manual
Bay #1
(For Stainless)		 750㎡ Hoist 2 5 Ton 10M Electric
Bay #2 975㎡ Hoist 2 10 Ton 8.8M Electric
Bay #3 900㎡ Hoist 2 20 Ton 9.3M Electric
Bay #4 600㎡ Hoist 2 5 Ton 10M Electric
Bay #5 600㎡ Hoist 2 5 Ton 10M Electric
Gantry Bay 2,520㎡ Gantry 2 20 Ton 9.3M Electric
